ATOS Q
Escáner 3D para la medición de objetos con geometrías complejas de pequeño a mediano tamaño con operación manual, semiautomática o automatizada.
![]({"xsmall":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.100.33.300,396,1919,936.file/atos-q_2.jpg","small":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.360.120.300,396,1919,936.file/atos-q_2.jpg","medium":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.768.256.300,396,1919,936.file/atos-q_2.jpg","large":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1024.341.300,396,1919,936.file/atos-q_2.jpg","xlarge":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1280.427.300,396,1919,936.file/atos-q_2.jpg","xxlarge":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1440.480.300,396,1919,936.file/atos-q_2.jpg","max":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1619.540.300,396,1919,936.file/atos-q_2.jpg"})

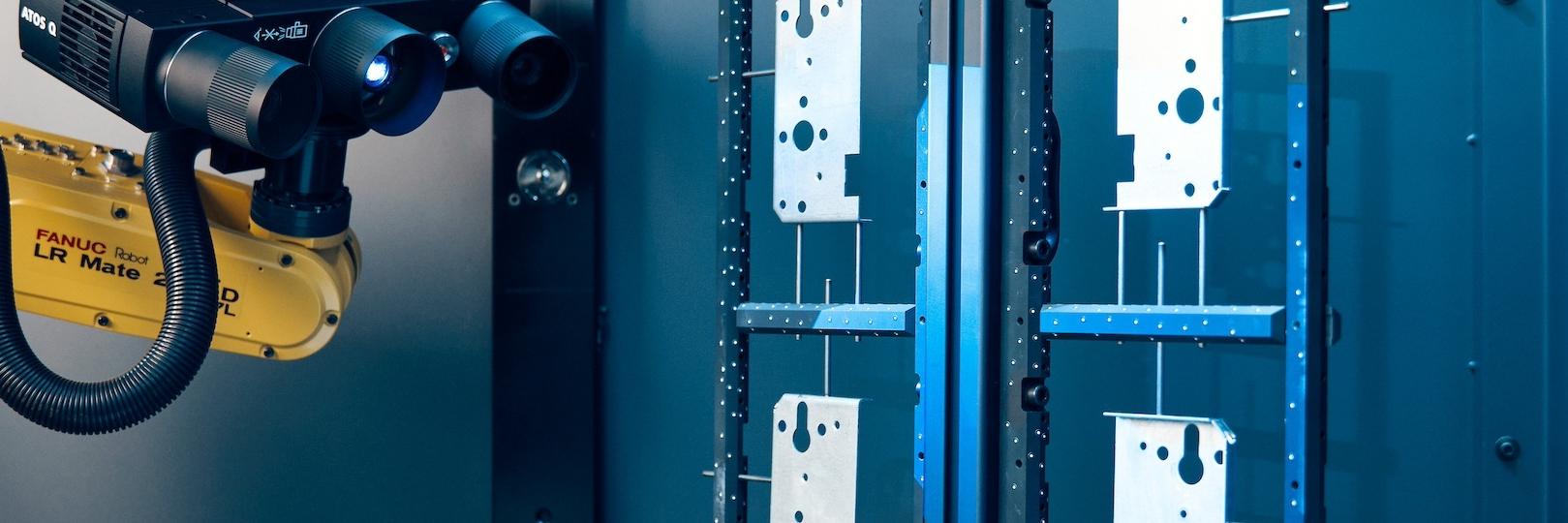

ATOS Q
Aseguramiento de la calidad de
Aseguramiento de la calidad de
piezas de chapa metálica
Desafíos
Junto con los crecientes requisitos de funcionalidad y seguridad, la demanda de piezas de chapa metálica de alta calidad crece continuamente. Además, poder desarrollar y lanzar productos en menos tiempo se considera una ventaja competitiva. Por lo tanto, es muy necesario un sistema de medición rápido y eficaz que compruebe las formas y la calidad de los productos.
![]({"xsmall":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.100.50.0,203,1920,1163.file/tuerschloss2.jpg","small":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.360.180.0,203,1920,1163.file/tuerschloss2.jpg","medium":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.768.384.0,203,1920,1163.file/tuerschloss2.jpg","large":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1024.512.0,203,1920,1163.file/tuerschloss2.jpg","xlarge":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1280.640.0,203,1920,1163.file/tuerschloss2.jpg","xxlarge":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1440.720.0,203,1920,1163.file/tuerschloss2.jpg","max":"https://www.zeiss.com.mx/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1920.960.0,203,1920,1163.file/tuerschloss2.jpg"})
La solución

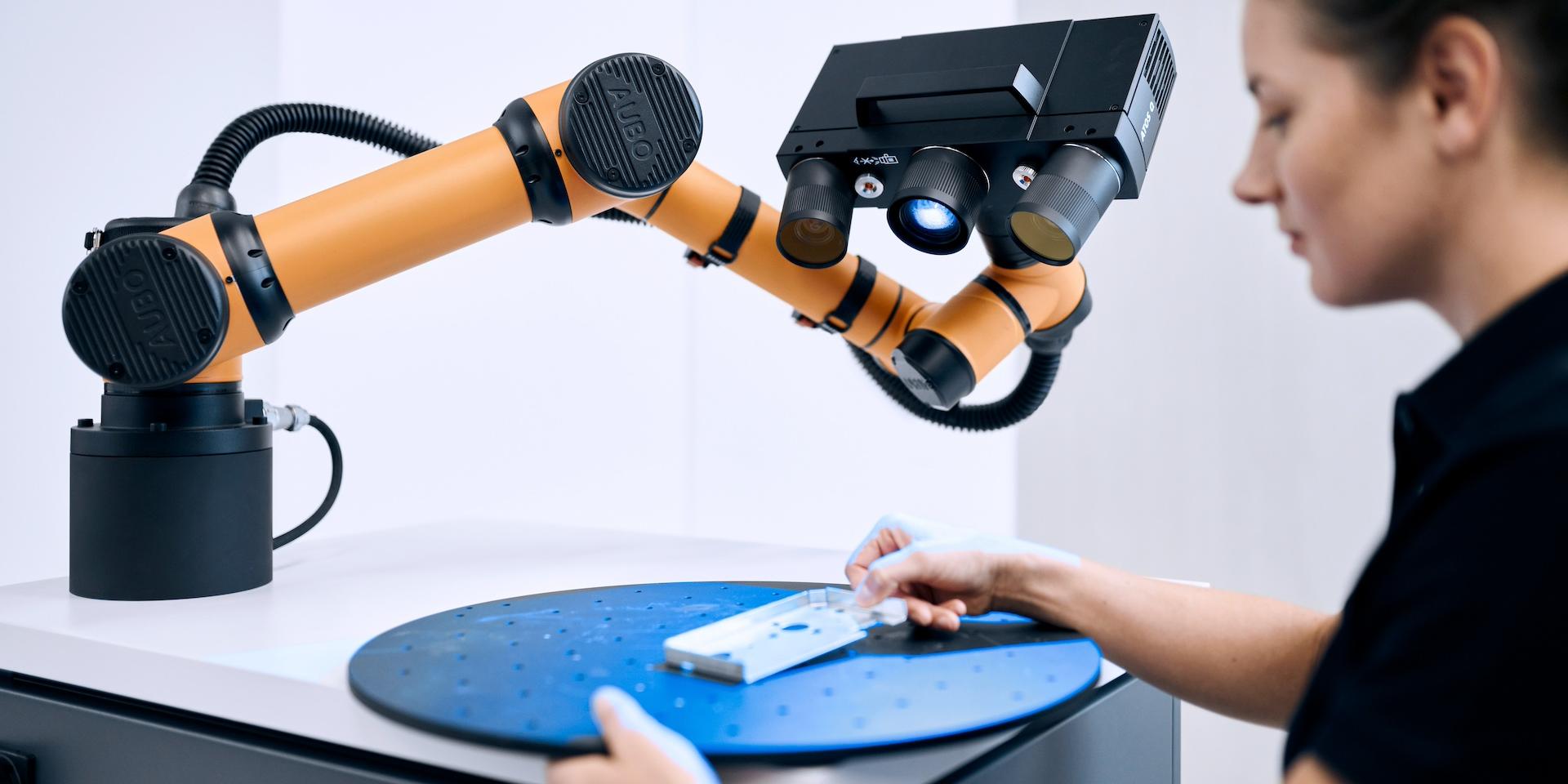

La solución automatizada de ZEISS, ATOS ScanBox, permite una inspección rápida y eficaz de piezas de chapa metálica. Su sistema de medición sin contacto se puede utilizar en el proceso de conformado de chapa metálica para garantizar un control de calidad constante desde la prueba de herramientas y la inspección del primer producto hasta el control de producción durante la fabricación en serie y el análisis del ensamble. ScanBox se suministra con la sala de medición virtual (VMR) de ZEISS INSPECT para facilitar la planificación y el control de las mediciones. Tras la configuración en la VMR, ScanBox ejecuta automáticamente el programa de medición e inspección. Incluso las piezas de chapa metálica reflectantes y los elementos con bordes afilados, como los recortes láser y los patrones de agujeros, pueden medirse con precisión. Los resultados de las mediciones proporcionan información inmediata sobre la calidad de las piezas. Los usuarios pueden ver la distorsión general de la forma y observar la desviación de la moldura. El software paramétrico ZEISS INSPECT permite incluso el escaneado de varias piezas y el análisis de tendencias durante la producción.
